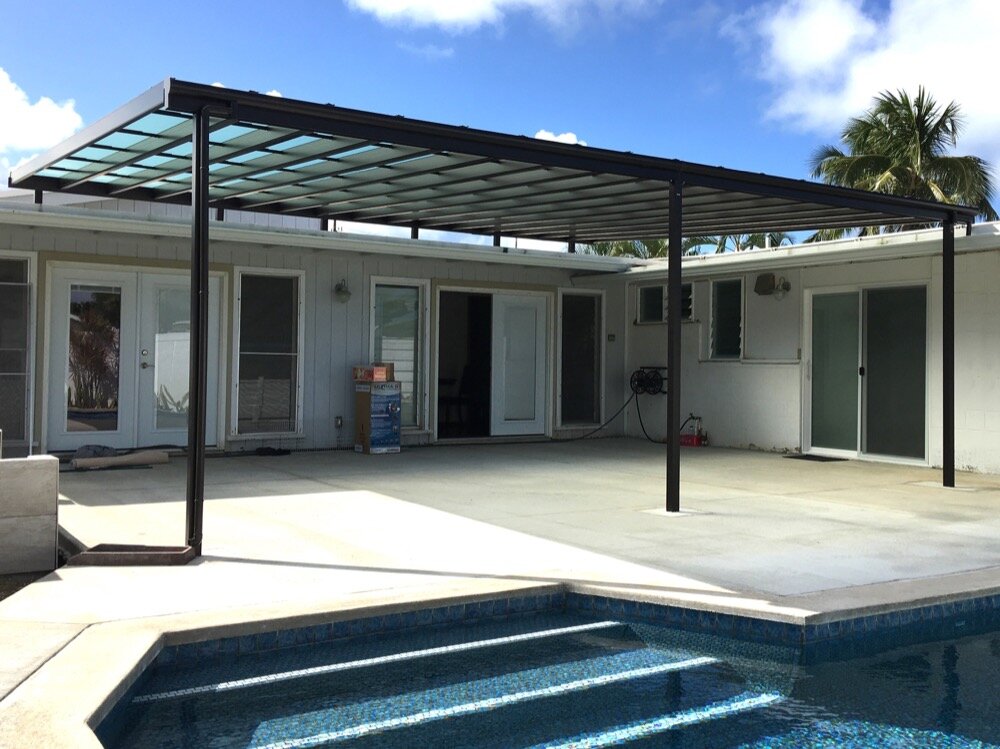

The REVOLU TFNA has straight rafters, received by a strong gutter beam on the outside. Posts attach under this beam and can move left or right to accommodate a specific post location. The width can be seamlessly extended without limit. Regular width is 12’, but 18’ units can be ordered as well. Maximum Projection is 20’.

REVOLU General Properties:

Projections 3’ to 8’ have a Panel-width of 36”

Projections 9’ to 20’ have a Panel-width of 18”

Rafter sizes are specifically designed to accommodate these projections. Shop drawings and specific structural reports are available from Japan.

A Japanese Patio Cover is ordinarily attached straight to a house wall. It can however, if needed, be mounted on top of a roof with special ledgers and brackets.
